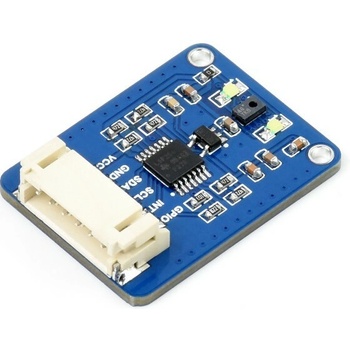

AS7341 Spectral Color Sensor

Spectral Identification And Color Matching, Ideal For Applications Like Compact Spectrometer

Compatible With Various Platforms Including Arduino, STM32, Raspberry Pi

Multi Channels, High Precision

Features At A Glance

• Incorporates AS7341 chip, which integrates 8x visible spectrum channels, 1x near infrared channel, and 1x no filter channel
• Embedded 6x independent 16-bit ADC, allows effectively processing data in parallel
• Dedicated channel to detect ambient light flicker on specific frequency
• 2x high brightness LEDs, can be used as fill light on dim environment
• Interrupt pin to output inner ADC real time operating status
• Features spectrum interrupt detection, with programable high/low thresholds
• Provides general purpose input/output GPIO pin
• Onboard voltage translator, compatible with 3.3V/5V operating voltage
• Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications

SENSOR

AS7341

DIMENSIONS 30.5 × 23mm

COMMUNICATION BUS

I2C

MOUNTING HOLE SIZE 2.0mm

OPERATING VOLTAGE 3.3V/5V

LOGICAL VOLTAGE 3.3V/5V

I2C Control Interface

Supports Host Boards Including Raspberry Pi/Arduino/STM32...

VCC 3.3V/5V power input

GND

GND

SDA connects to MCU I2C data pin

SCL connects to MCU I2C clock pin

INT interrupt output

GPIO general purpose input/output

Hardware Connection

Connecting With Raspberry Pi

Connecting With Arduino Board

Demonstration

Outline Dimensions

Resources & Services

WIKI: AS7341_Spectral_Color_Sensor

PACKAGE CONTENT

Weight: 0.009 kg

• AS7341 Spectral Color Sensor x1
• PH2.0 6PIN wire 20cm x1
